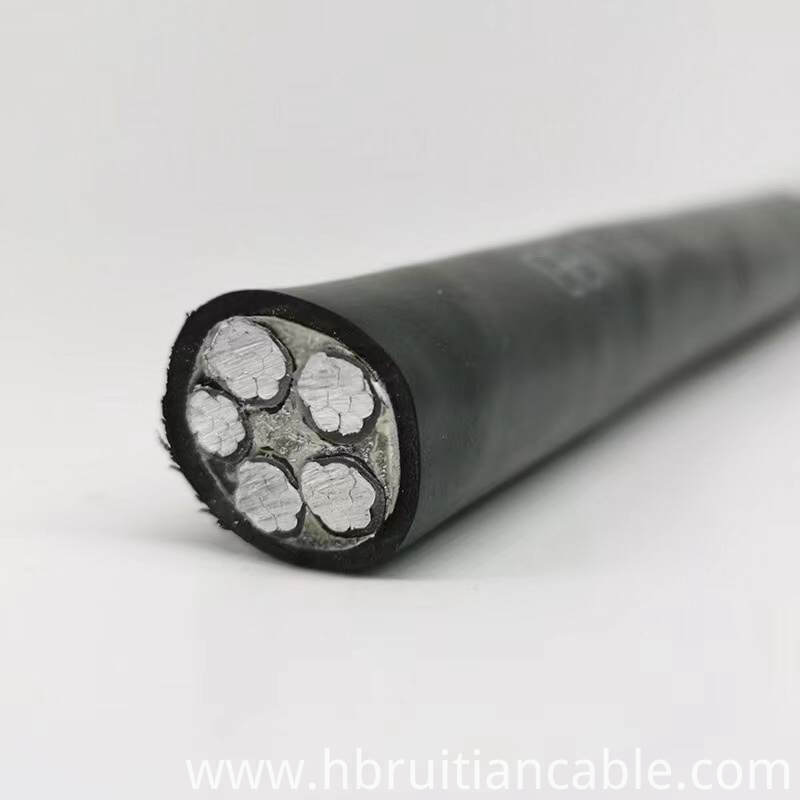

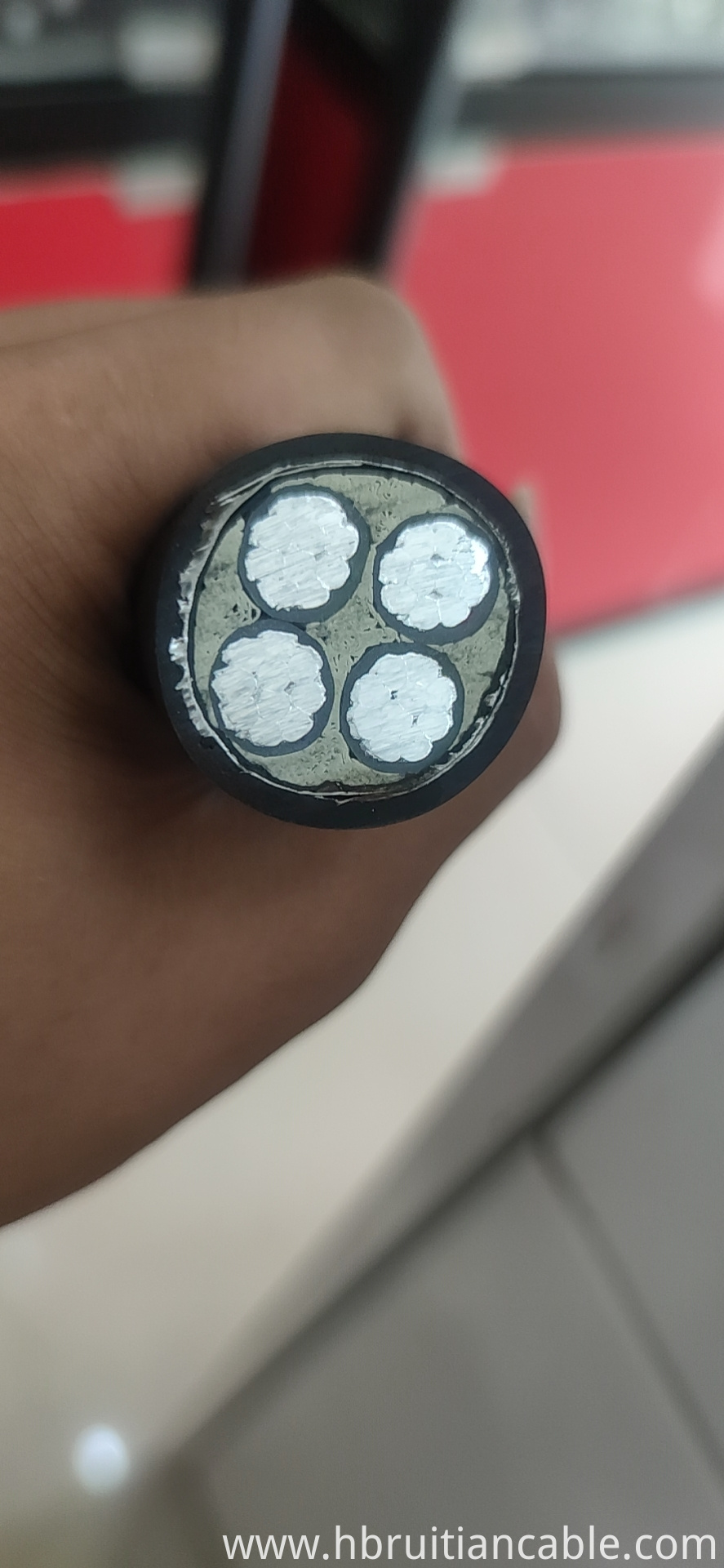

Factory 4x25mm2 Cable Aluminum Wire Cable Price

1. Standard
IEC 60502, 60228, 60332, 60331
DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)

2. Application
This cable is used for fixed installations, such as distrubution networks or industrial installations. It can be installed in cable duct, trench or directly buried in earth.

3. Product Description
1) Rated Voltage: 0.6/1KV 3.6/6KV 6.5/11KV, 11KV, 33KV, 66KV, 132KV
2) Max. working temperature: 90 °c
3) Max. temperature during short circuit (≤5S): 250 °c
4) Conductor: class 1, 2 copper or aluminum
5) Sectional area: 25 – 630mm2
6) Insulation: XLPE
7) No. of cores: 1, 3
8) Armor: steel wire or steel tape for 3 core cables and non-magnetic material for single core
9) Oversheath: PVC
10) Min. beding radius: 15 times cable radius for single-core cables and 12 times for multi-core ones
11) Max. conductor DC resistance at 20°c:
