Copper CU conductor XLPE insulation power electrical cable
12
People watching this product now!
Reviews (0)
Description

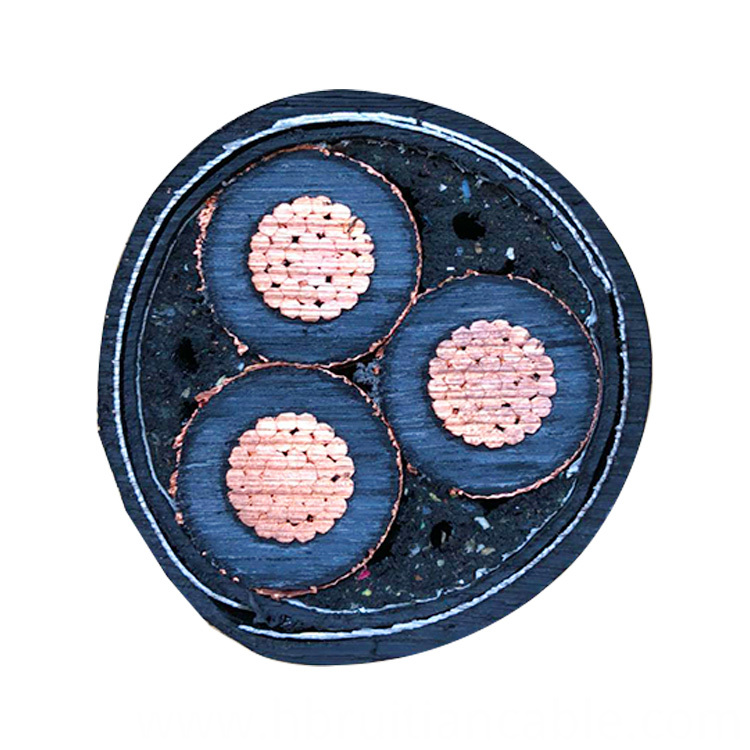

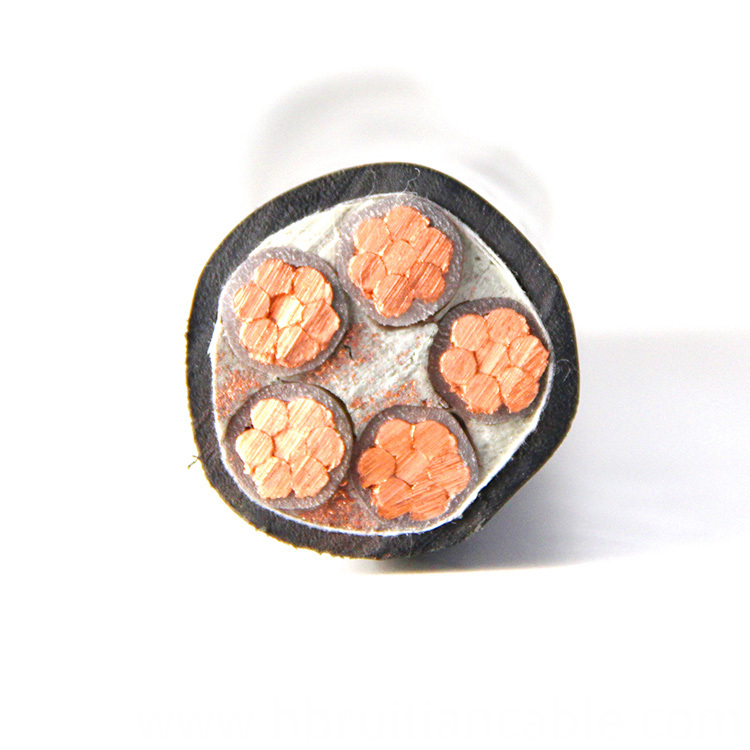

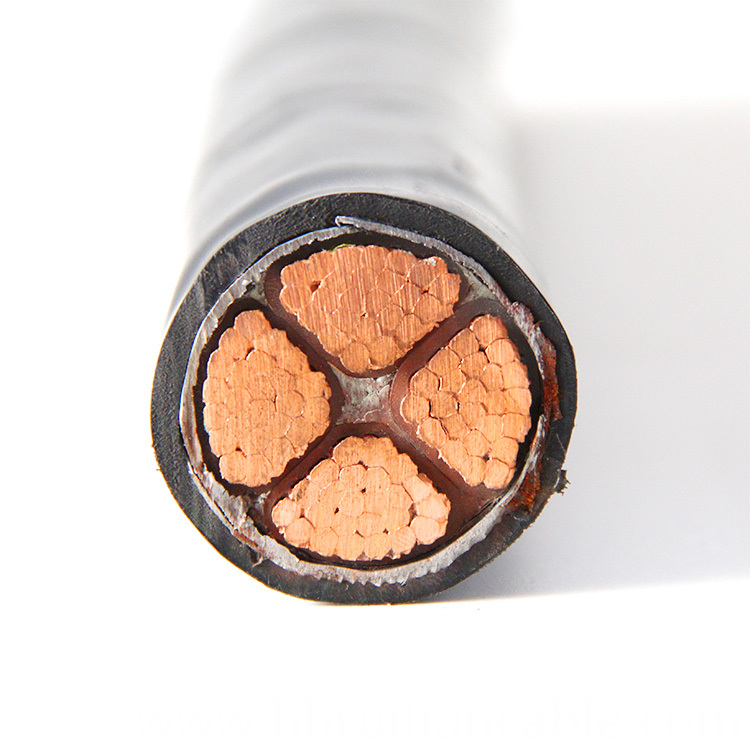

Copper CU conductor XLPE insulation YJV 25 30 35 70 95 sqmm power electrical cable
product information
| Conductor: | copper |
| Range of number of cores: | 1 2 3 4 5 3+1 4+1 3+2 |
| Range of cross section(mm2): | 10 16 25 35 50 70 95 120 150 185 |
| Insulation: | XLPE |
| Amoured: | steel tape or wire armoured |
| Screened: | Copper tape or copper wire braiding |
| Inner sheath: | PVC |
| Over Sheath: | PVC |
| Rated voltage: | 6/10kv 8.7/15kv 12/20kv 18/30kv 21/35kv |
| Model | Name | Application site | Section area | Cores | Rate voltage |
| VV | Copper Conductor PVC insulated PVC sheathed Power Cable | Indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single-core cables laid in magnetic ducts are not allowed . | 10 16 25 35 50 70 95 120 150 185 | 1 2 3 4 5 3+1 4+1 3+2 | 6/10kv 8.7/15kv 12/20kv 18/30kv 21/35kv |
| VLV | Aluminum Conductor PVC insulated PVC sheathed power cable | ||||
| YJV | Copper Conductor XLPE insulated PVC sheathed power cable | ||||
| YJLV | Aluminum Conductor XLPE insulated PVC sheathed power cable | ||||
| YJY | Copper Conductor XLPE insulated PE sheathed power cable | ||||
| YJLY | Aluminum Conductor XLPE insulated PE sheathed power cable | ||||
| VV22 | Copper Conductor PVC insulated steel tape armored PVC sheathed power cable | Indoor, tunnel, cable trench or underground laying, able to bear external mechanical forces, but can not afford a big pull. | |||
| VLV22 | Aluminum Conductor PVC insulated steel tape armored PVC sheathed power cable | ||||
| YJV22 | Copper Conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||
| YJLV22 | Aluminum Conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||
| YJV23 | Copper Conductor XLPE insulated steel tape armored PE sheathed power cable | ||||
| YJLV23 | Aluminum Conductor XLPE insulated steel tape armored PE sheathed power cable | ||||
| VV32 | Copper Conductor PVC insulated steel wire armored PVC sheathed power cable | Indoors, in tunnel, cable trench, well or burying, able to bear external mechanical forces and a certain tension. | |||
| VLV32 | Aluminum Conductor PVC insulated steel wire armored PVC sheathed power cable | ||||
| YJV32 | Copper Conductor XLPE insulated steel wire armored PVC sheathed power cable | ||||
| YJLV32 | Aluminum Conductor XLPE insulated steel wire armored PVC sheathed power cable | ||||
| YJV33 | Copper Conductor XLPE insulated steel wire armored PE sheathed power cable | ||||
| YJLV33 | Aluminum Conductor XLPE insulated steel wire armored PE sheathed power cable |
